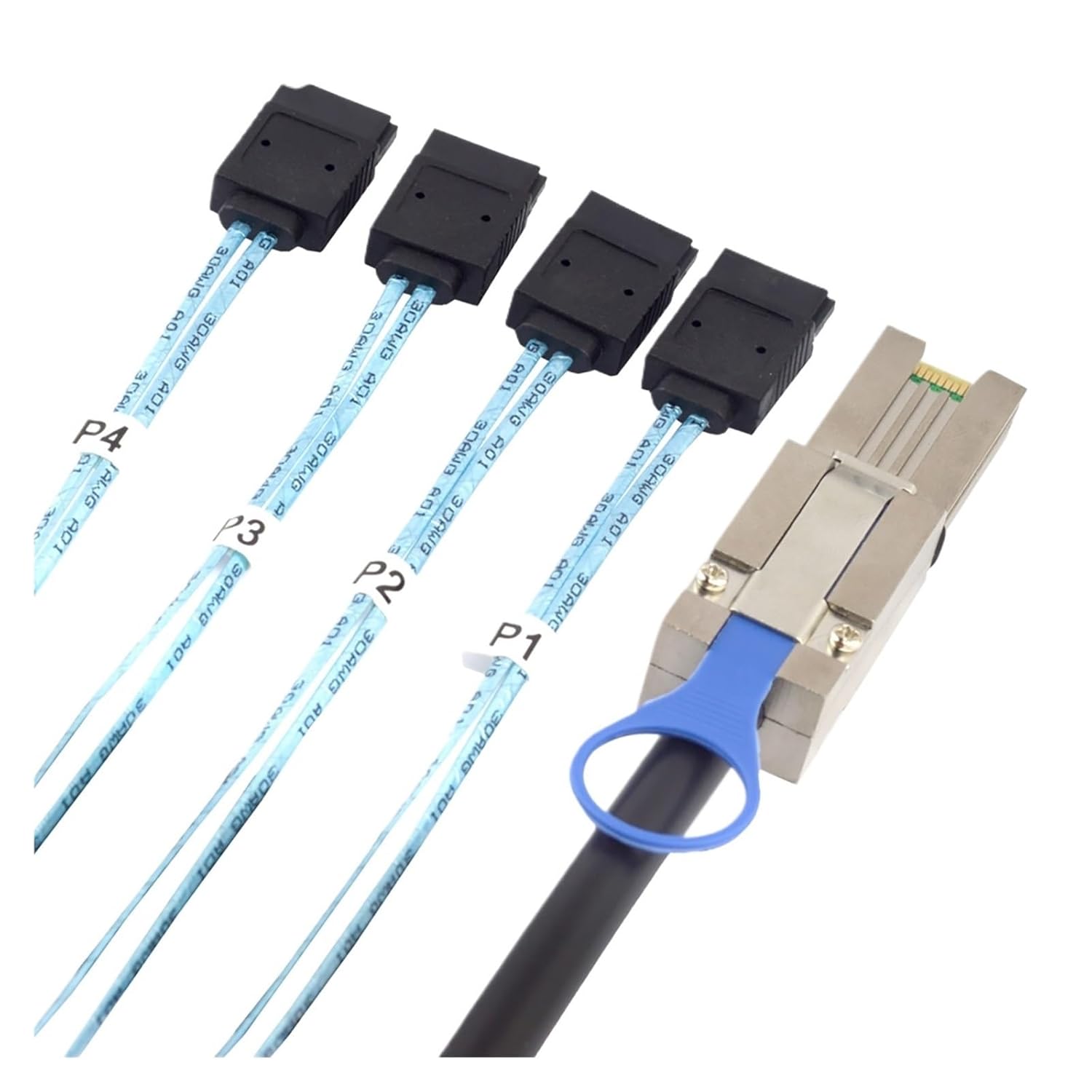

0.5M S/AS 26Pin HD SFF-8088 to 4 SATA 7Pin Female Without Latch Cable
4.3 (85 items)
Limited Time Sale$21.06 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215168122 | Release Date | 2026/04/12 | List Price | $14.04 | Model Number | 215168122 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description: M1ni S/AS 26Pin HD SFF-8088 to 4 SATA 7Pin Female without latch CableSeries: M1ni S/ASCable Length: 0.5MWire Size: 28AWG, Tinned Copper, OD: 0. 9*2.3,MMLock to Mating Part: With LatchPlating: Au 15u' min over Ni 100u' minColor: Cable , Over BlackCompliance: Flammability: Cable Horizontal flame, PCB 94V-0, PBT 94V-0ApplicationsData/Communications1. (Redundant Array of Independent Disks)2.Workstations3.Rack-mount server4.Servers5.Storage rackFeatures and Benefits1.Transmission rate 12Gbps.2. Meet SAS4.0 specification.Mechanical PerformanceMating Force and Unmating ForceCondition: EIA 364-13. Insert and extract at a speed of25mm/minute.Mating Force: 55 N maximum for M1ni S/AS.Unmating Force: 49 N maximum for M1ni S/AS.Mating Force: 45 N maximum for SATA connector.Unmating Force: 10 N maximum for SATA connector.Electrical Performance1. Current Rating0.5Amperes maximum per pin when mated.2.Voltage Rating30VAC per when mated or unmated.3. Resistance30mohm max. initial, 15mohm maximum after stress test.4.Dielectric Withstanding Voltage500 VAC for 1 minute no breakdown.5.Insulation Resistance1000 Mohm minimum.Signal Integrity1. Mated Connector Impedance: 100 Ω±15%2. Cable Absolute Impedance: 100 Ω±10%3. Cable Pair Matching:±5 Ω4. Common Impedance: 25 to 40 ohms5. Insertion loss: -6dB maximum up to 4.5Ghz;6. Crosstalk: -26 dBup to 6Ghz;Product ComplianceRoHS2.0:CompliantChinaRoHS:YesREACH SVHC:YesLow-Halogen Status:Not ReviewedThe Product photoWorkshop photoPackage : YesModel Number : 8088-004TY>pe : / S/AS / InfiniBand CablesOrigin : ChinaCertification : CE
- Optimized Signal Integrity:Maintain signal integrity with a low ±5 Ω cable pair matching, reducing crosstalk to -26 dB.
- Comprehensive Compliance:Meets ROHS2.0 and REACH SVHC standards, ensuring a low-halogen, solution.
- High-Speed Data Transmission:Achieve rapid data transfer with a 12Gbps transmission rate, meeting SAS4.0 specifications for efficient storage.
- Robust Connectivity:Withstand the rigors of server environments thanks to a 55N mating force and 49N unmating force for reliable connections.
- Versatile Compatibility:This M1ni S/AS to SATA cable connects a variety of devices, ideal for , workstations, and servers.
| Color | Black |
|---|---|
| Model | 0000717 |
| Brand Name | HYAGBCOP |
| Cable Type | AUX |
| Model Name | 0000717 |
| Manufacturer | xiaoping066 |
| Connector Type | 20 Pin ATX |
| Outer Material | paper |
| Number of Items | 1 |
| Connector Gender | Female-to-Female |
| Specification Met | UL |
| Compatible Devices | Amplifier |
| Other Special Features of the Product | Braided |
