9"(230mm) Fuel Sending Unit and Gauge Kit Stainless Steel RV Tank Sensor Boat Fuel Sender Gas Sending Unit Marine Fuel Gauge Gas Tank Sending Unit Replacement Water Level Sensor 240-33ohm
4.9 (131 items)
Limited Time Sale$40.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208096700 | Release Date | 2026/03/22 | List Price | $26.79 | Model Number | 208096700 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

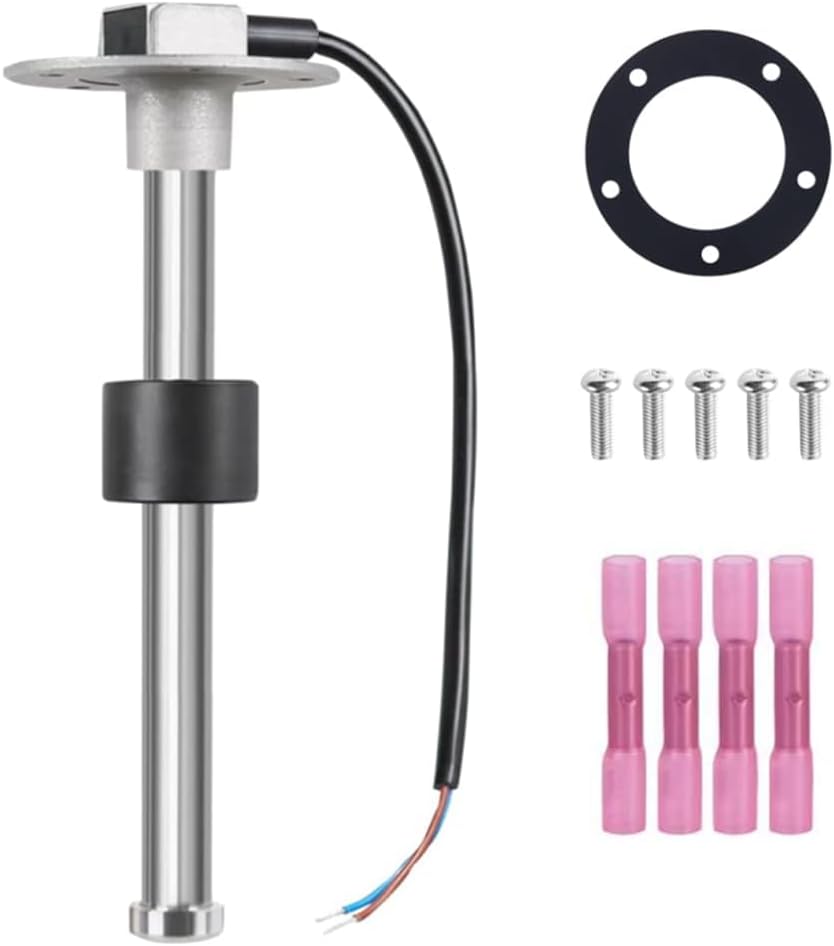

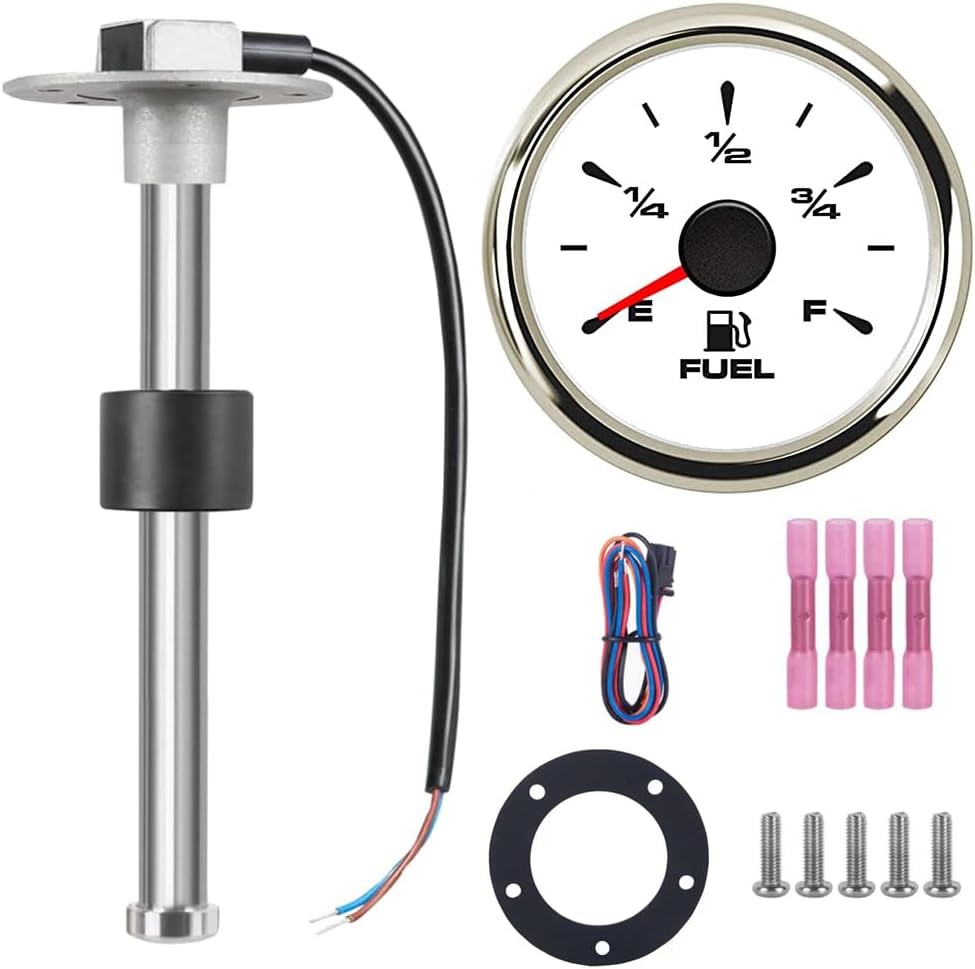

Sucicago Fuel Sender And Fuel Gauge Kit Is Designed to Monitor The Fuel/Gasoline/Diesel Level in The Tank. There are So many Versions Of Fuel Level Sensor and Fuel Gauge on Amazon. Looks the same From Picture But Looks Can Be Deceiving.S Why Sucicago Fuel Sender and Fuel Gauge Kit ? The Resolution of Sucicago 5”,6”,7” Fuel Level Sending Unit is 10mm.It Gives a more accurate and steady measurement. The wire of Sucicago Fuel Gauge is 0.5 Square. Sucicago Fuel Gauge is Powered by Stepped motor technology. 316 Stainless Steel Bezel. OThers: 1. The Resolution Of Sender 4”,5”,5.5”,6”,7”,7.5 Is 21mm. Lack of Resolution,The Resistance Changes Are Not Consistent As The Float Rises.This sensor will Get The Job Done But It Will Provide Less Accurate Information To Your Gauge. The Wires of Fuel Gauge Are Ridiculously Too small. It’s Unable To Meet American vehicles Wire Thickness Standard. Steel Chrome Bezel, Easy To Rust. Operational Temperature: -40°F ~ +85°F (-40°C ~ +85°C). Additional Information : Package Included: 1 x Sucicago Fuel Sender 1x Sucicago Fuel Gauge 1 x NBR Gasket 5 x M5*0.8 Length(16mm) Screws 4 x of Quick Wiring Terminals 1x Sending Unit and Fuel Gauge Kit Installation Guide ［Really Important to Know BEFORE You Order］ 1) To Allow The Sender not Hit The Bottom of The Tank, The Length of Sender Should be 1" less Than The Depth of The Tank If Tank Is Plastic, And 0.5" Less Than The Depth of The Tank If Tank is Metal . 2)The Diameter of Float is 1.38"(35mm). If You Have to Drill The Hole, Diameter 1.50"(38mm) Hole Would be Perfect.Sucicago Fuel Senders are not linear. Note： It's suggested That The Customer Do Bench Test For The Sucicago Fuel Sender and Fuel Gauge Kit Before installation to Ensure Both Work Fine.
- <b>[Perfect Replacement Fuel Sender ］</b> Sucicago Reed Switch Diesel Fuel Water Level Sensor is a Better Option Than the Traditional Lever Type Sensors. <b>The Boat Fuel Tank Will not Effected by The Constant Movement Caused by Waves and Boat Rocking. </b> It Will give an Accurate Indication of Fuel Level and the Fuel Gauge No Longer Bounces All Over The Place In Windy Wave Situations.<br>

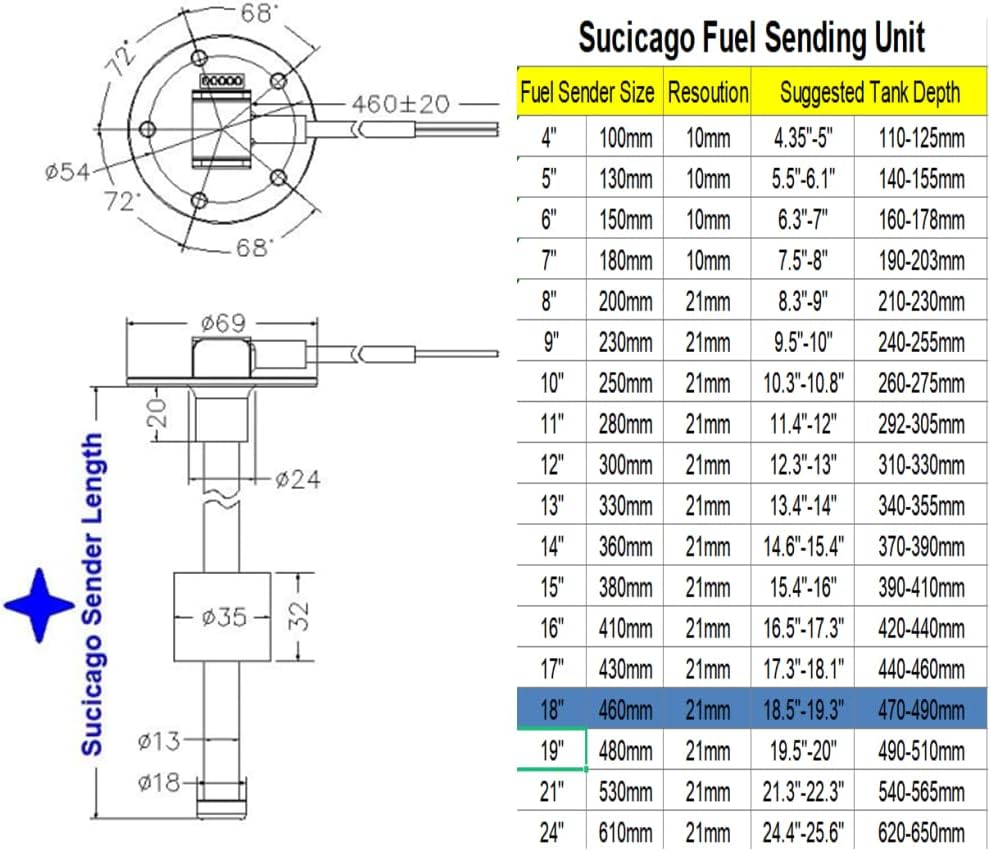

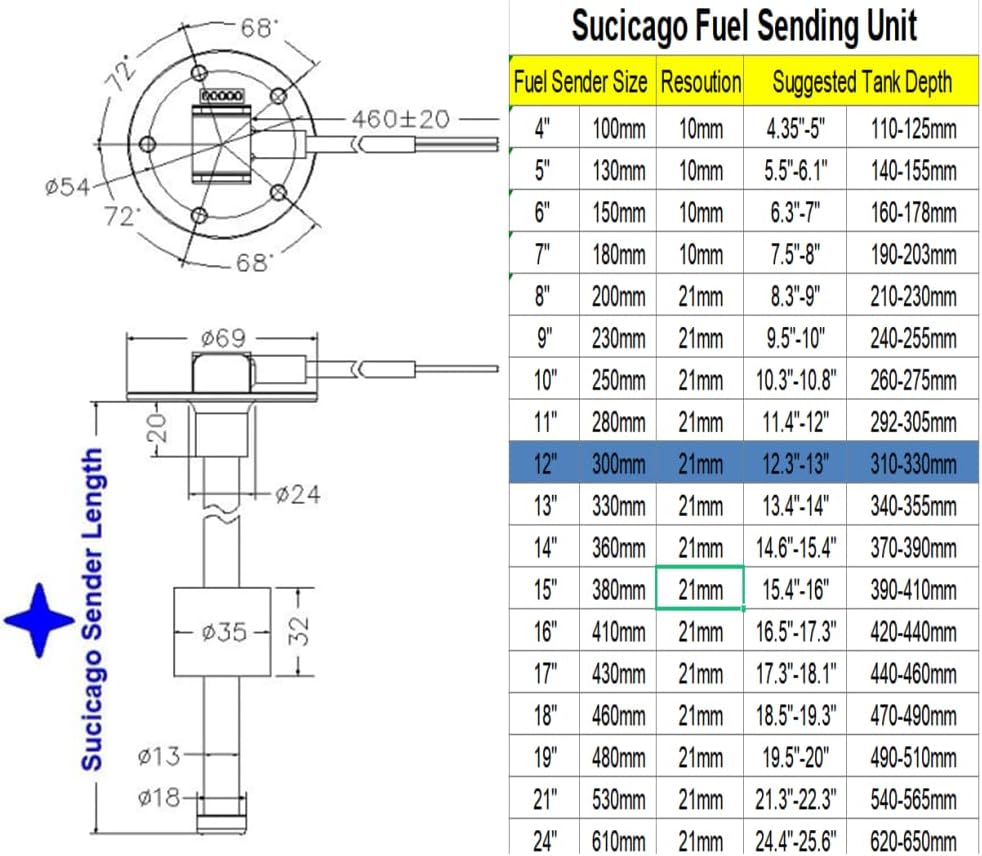

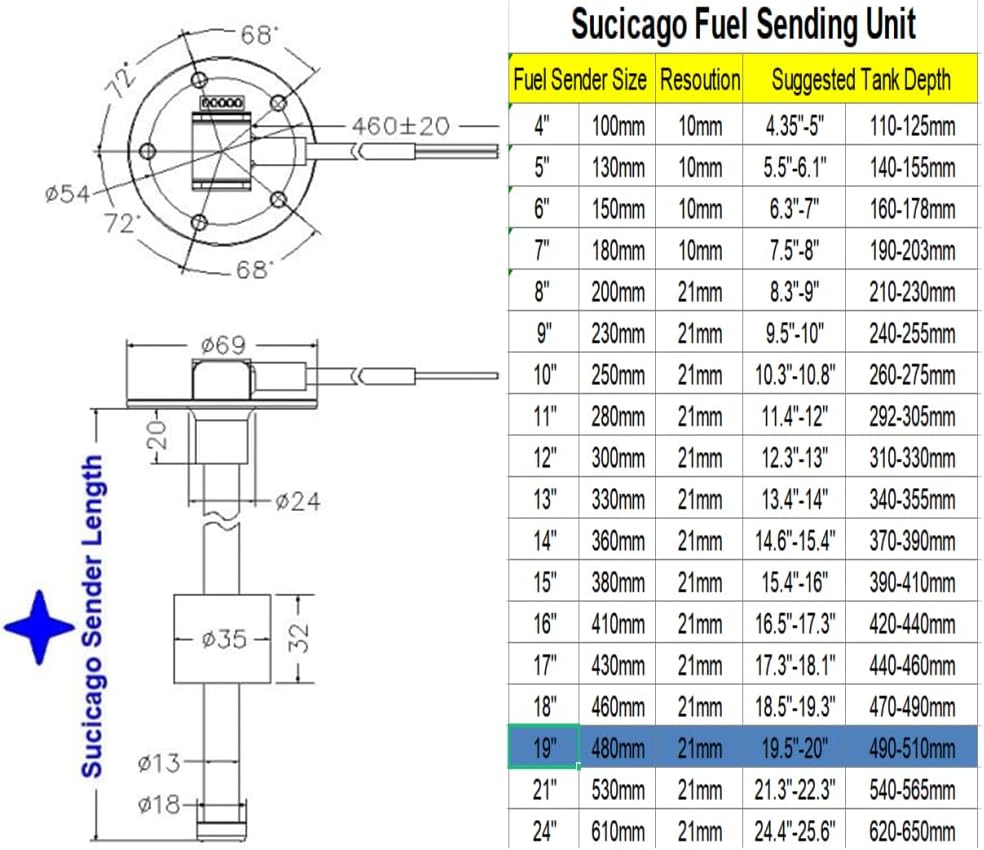

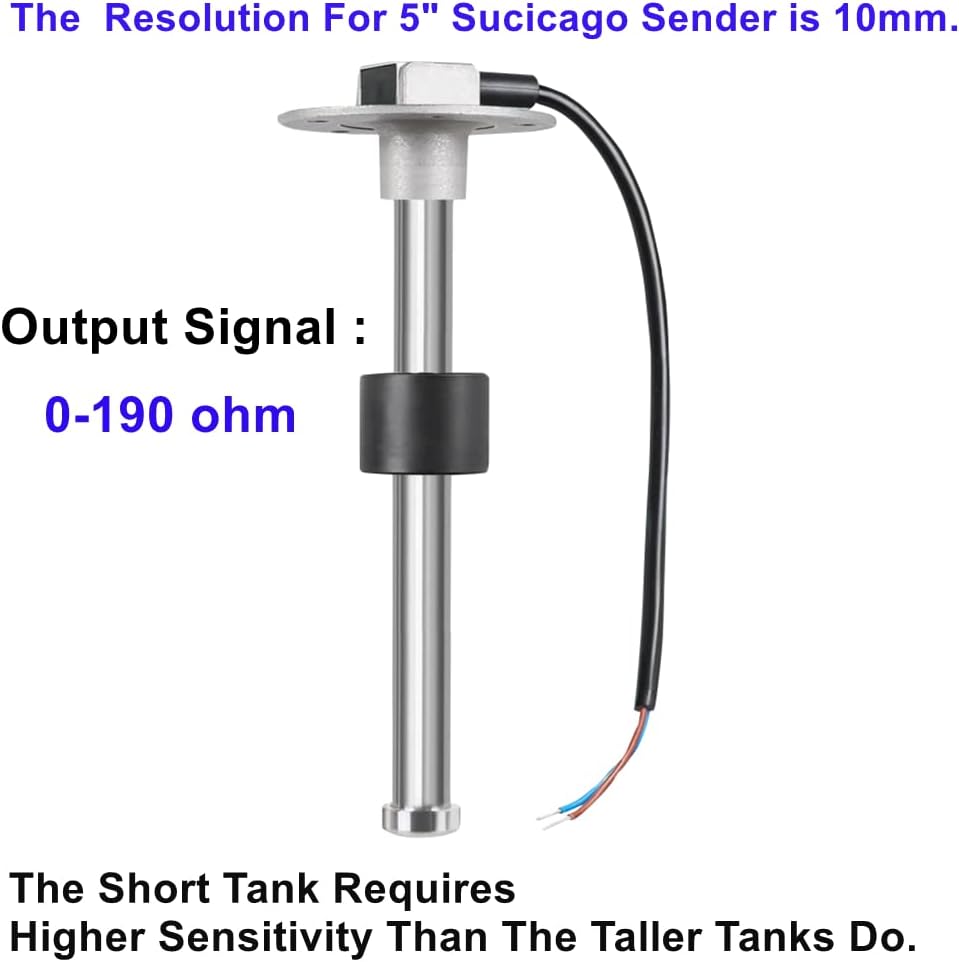

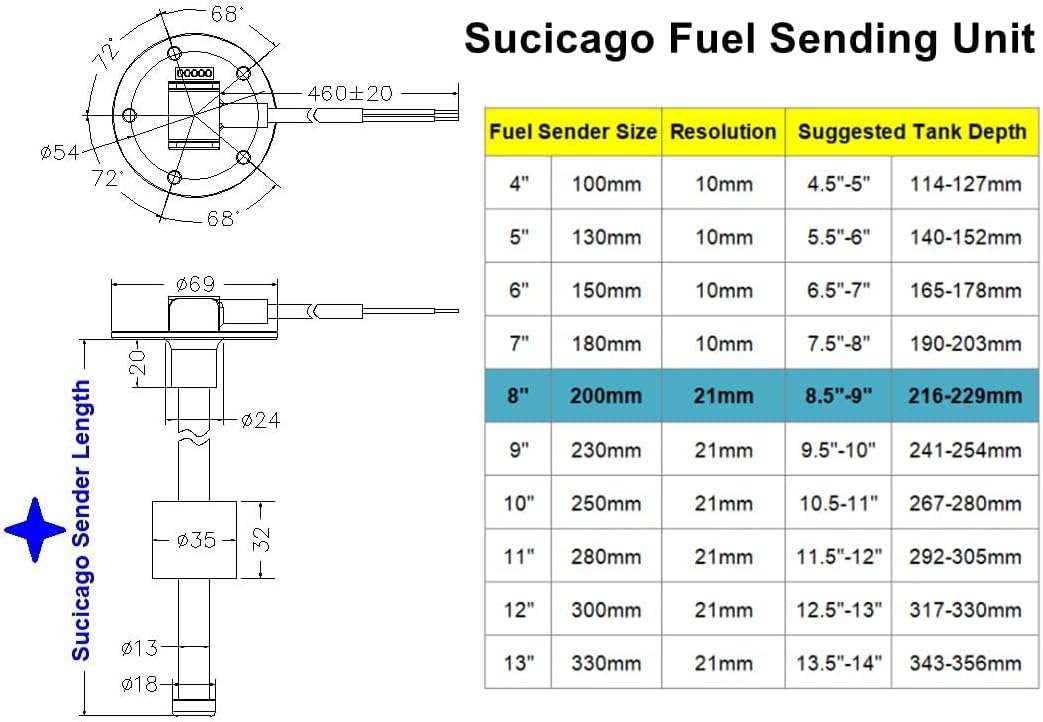

- <b>[A Good Resolution ］</b>We Received Feedback From Customers Who Said the Smaller Sending Units As A Short Tank Requires Higher Sensitivity Than The Taller Tanks Do.Our R&D Has Redesigned :10mm Resolution Range : 4”,5”,6”,7”. 21mm Resolution Range: 8”,9”,10”,11”,12”,13”,14”,15”,16,17”,18”,19,20”.The Sucicago Fuel Sender Gives A Nice Smooth Gauge Reading.<br>
- <b>[Stainless Steel Stem And Flange］</b>Well Built And Sealed, SAE 5 Hole Mounting Pattern ( NOT Equidistant ).Note the Hole Pattern On The Sucicago Marine Fuel Sending Unit Is Not Evenly Spaced. And There Is Only One Way to Allign the Gasket.<br>

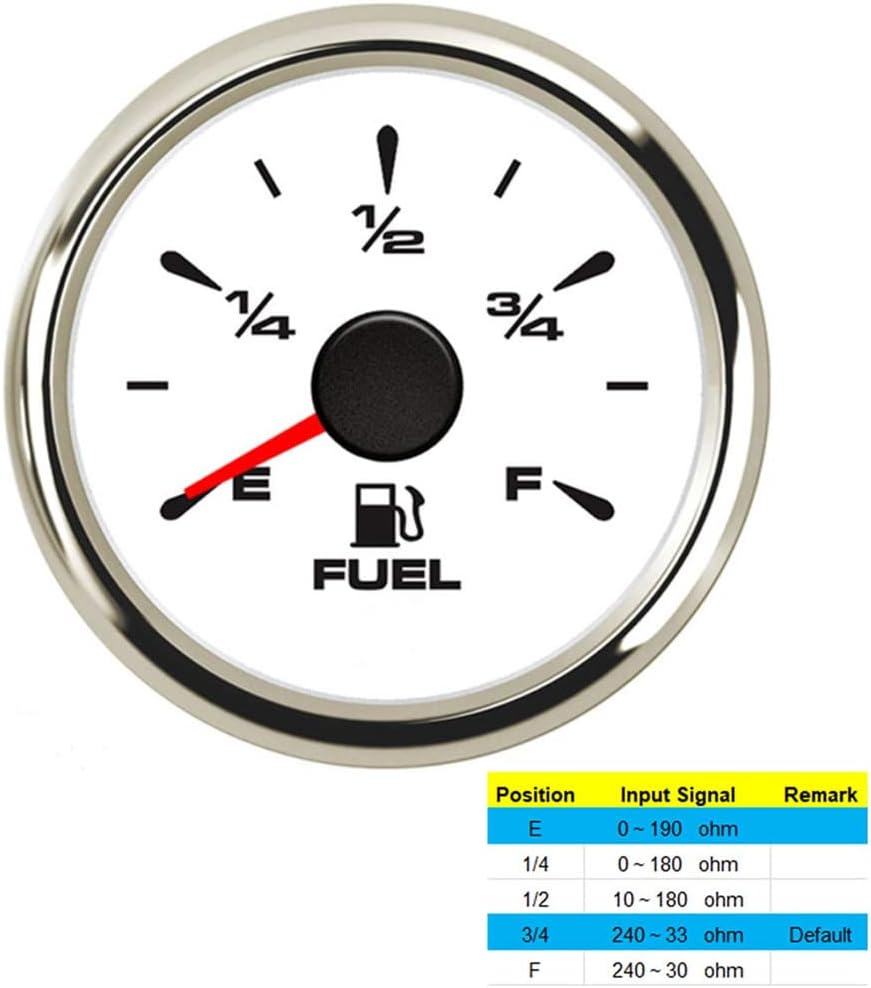

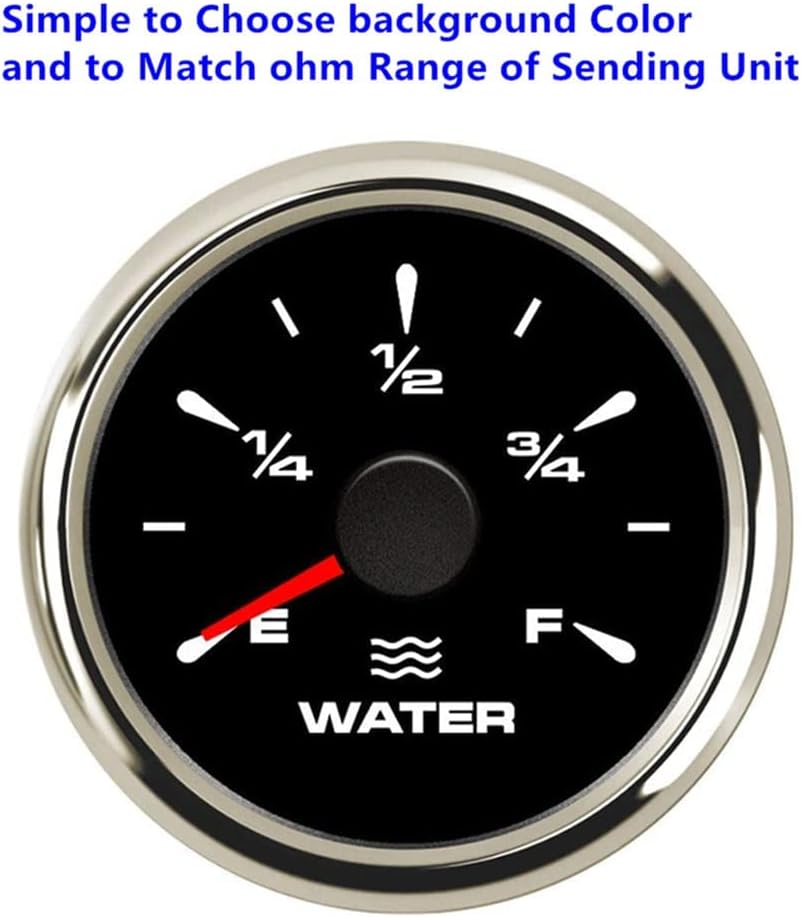

- <b>[Big Sweep And Large Scale ］</b>You Can Really See The Movement Because Instead Of Only 90 Degree Sweep The Sucicago Fuel Level Gauge Has a 240 Degree Sweep. Expanded Gauge Markings On The Face Making It Easier To Get A More Accurate Idea Of Fuel Level. <br>

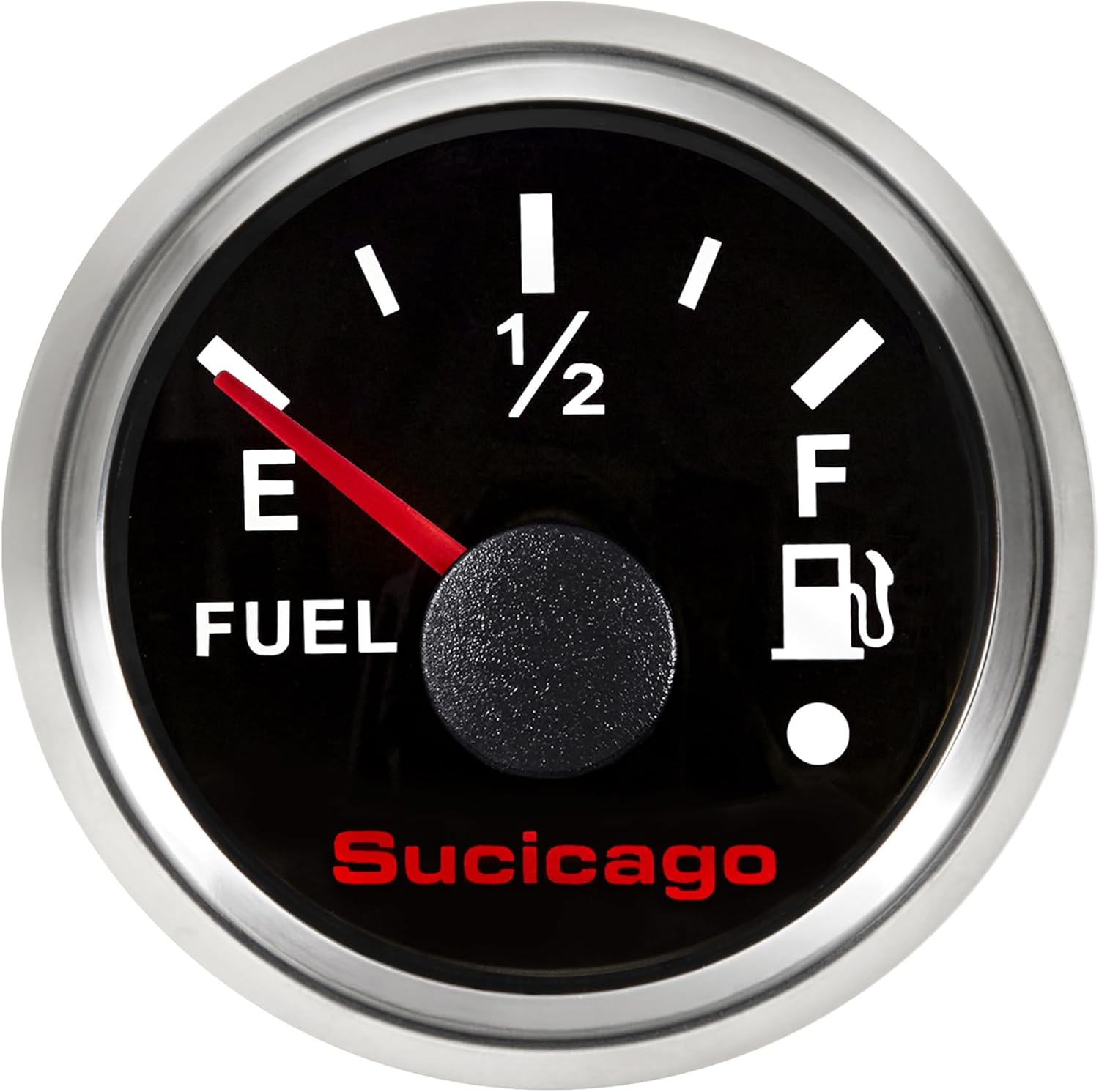

- <b>[Smooth Sweeping］</b>The Needle Of Sucicago Marine Fuel Gauge Doesn't Bounce All Over The Place In Choppy Water.IP67 waterproof and Dustproof grade,316 Stainless Steel Bezel. Install diameter: Φ52mm or 2-1/16'', Indication range: E~F, Working voltage: 9-32v dc fit 12V-24V Vehicle or Engine. <br>
| Brand | Sucicago |
|---|---|
| Item Weight | 1.01 pounds |
| Manufacturer | Sucicago direct |
| Item model number | XQ-YFZ9YBB |
| Product Dimensions | 9.8 x 2.7 x 2.7 inches |
| Manufacturer Part Number | XQ-YFZ9YBB |
