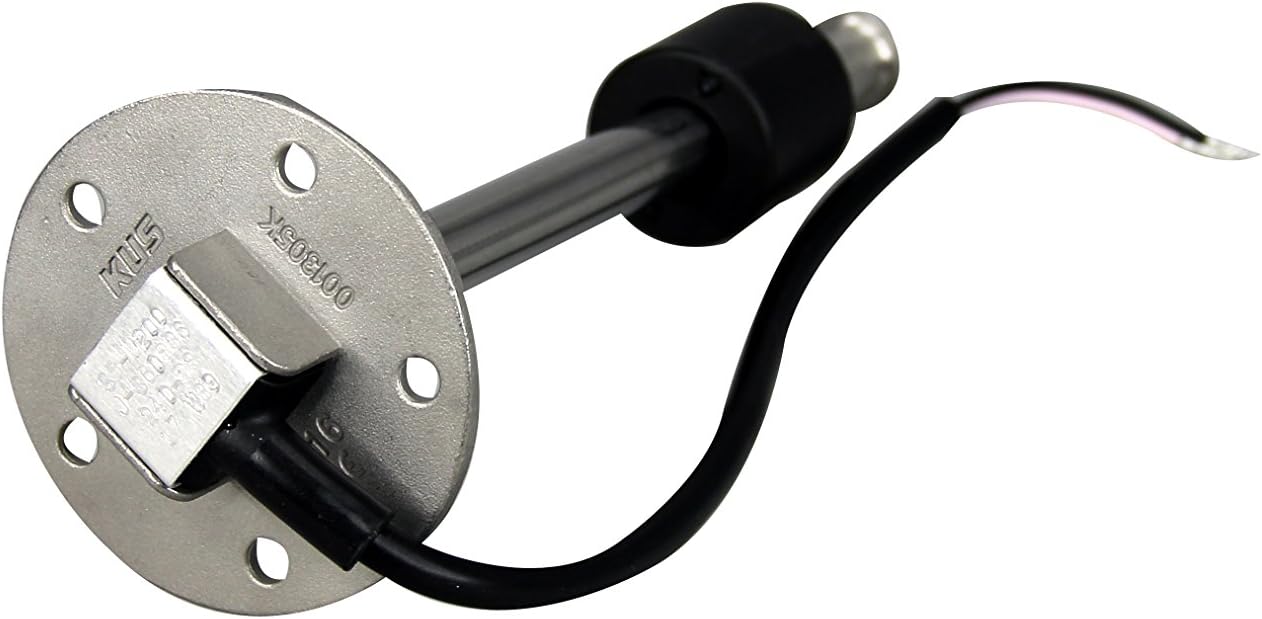

KUS Pactrade Marine Boat RV Truck Car SS 316 Fuel Water Level Gauge Sensor 240-33ohms SAE Standard 5 Holes

Pactrade Marine Boat RV Truck Car KUS SS 316 Fuel Water Level Gauge Sensor 240-33ohms SAE Standard 5 Holes. It is done bu sealed read switches positioned inside the main shaft of the sensor. A float with built-in magnets then triggers the reed switch delay, generating a potential-signal with resistance, current, or voltage value that increases or decreases according to fluid level, then give the signal to the gauge via wires, which shows the right level reading by pointer. this level sensors, the float is the only moving part of the sensor, thereby minimizing potential mechanical failures to get the precision measurement. Material: SS316 Supply Voltages: 10 to 32V. Rated current for alarm switch: 500mA. Resolution Range: 10 to 40mm Operation temperatures: ~ 40 to to 85°C. Protection Rank: IP67 Option: High/Low Alarm

• Suitable for truck, generators, bus and marine field. Widely used in fuel, water, Kerosene and chemical tanks
• OEM quality, widely used on automotive and marine OEM. Reed switch, continuous and steady output signal. Simple and strong structure,. Advanced corrosion resistance. Long service life, anti-vibration, anti-explosion.
• High quality fuel level sender Economical level sensing solutions.
• Without limitation of environment, length can be customized.
• Assembled with O-ring, easy for installation.
