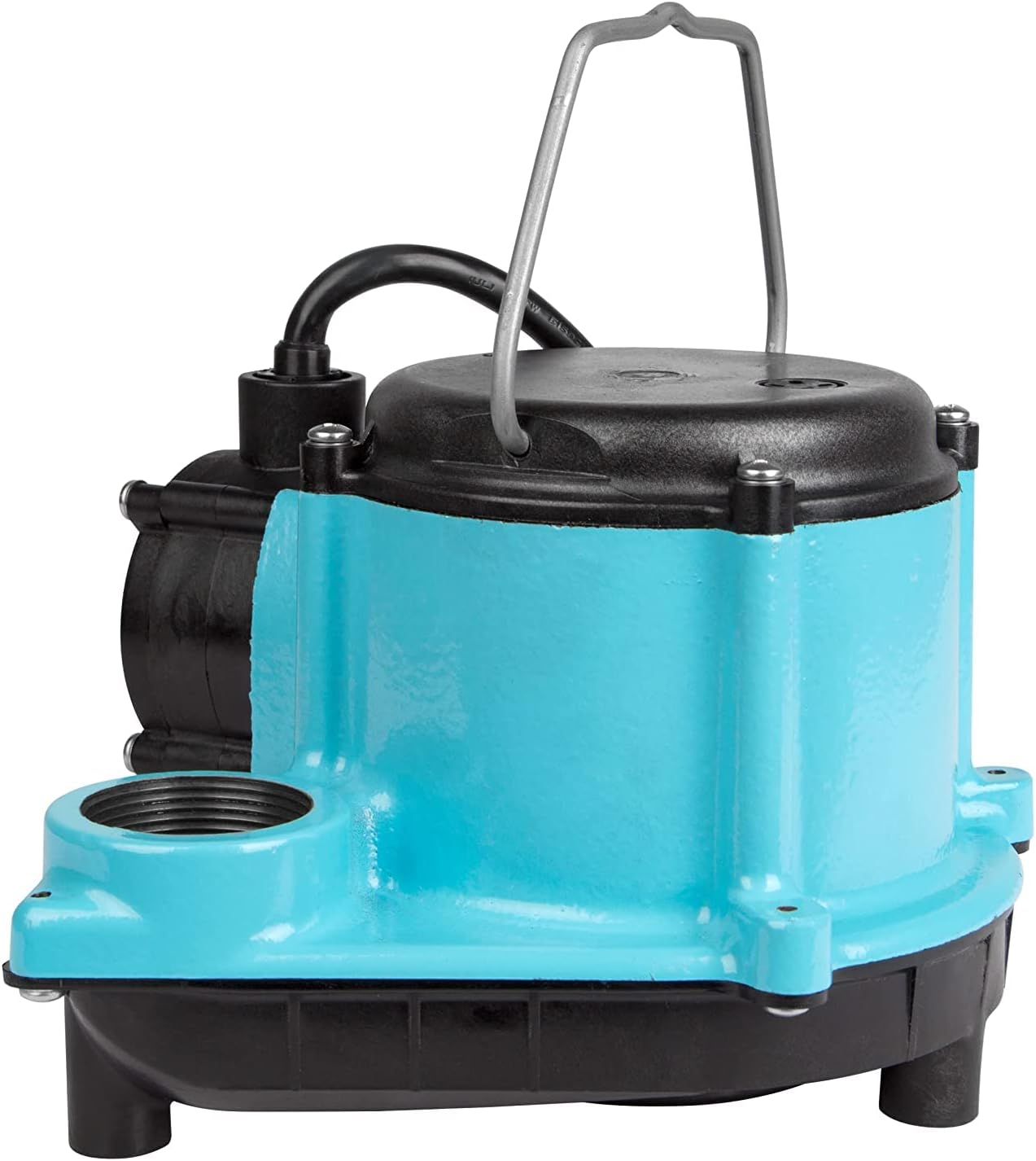

Little Giant 6-CIA 115 Volt, 1/3 HP, 2760 GPH Cast Iron Automatic Submersible Sump Pump with Integral Diaphragm Switch for Sump Systems, 10-Ft. Cord, Blue, 506158

flash sale iconLimited Time Sale
Until the end
15
59
42

$79.25 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
New  $132.09
quantity

Product details

Management number 207906025 Release Date 2026/03/22 List Price $52.84 Model Number 207906025
Category

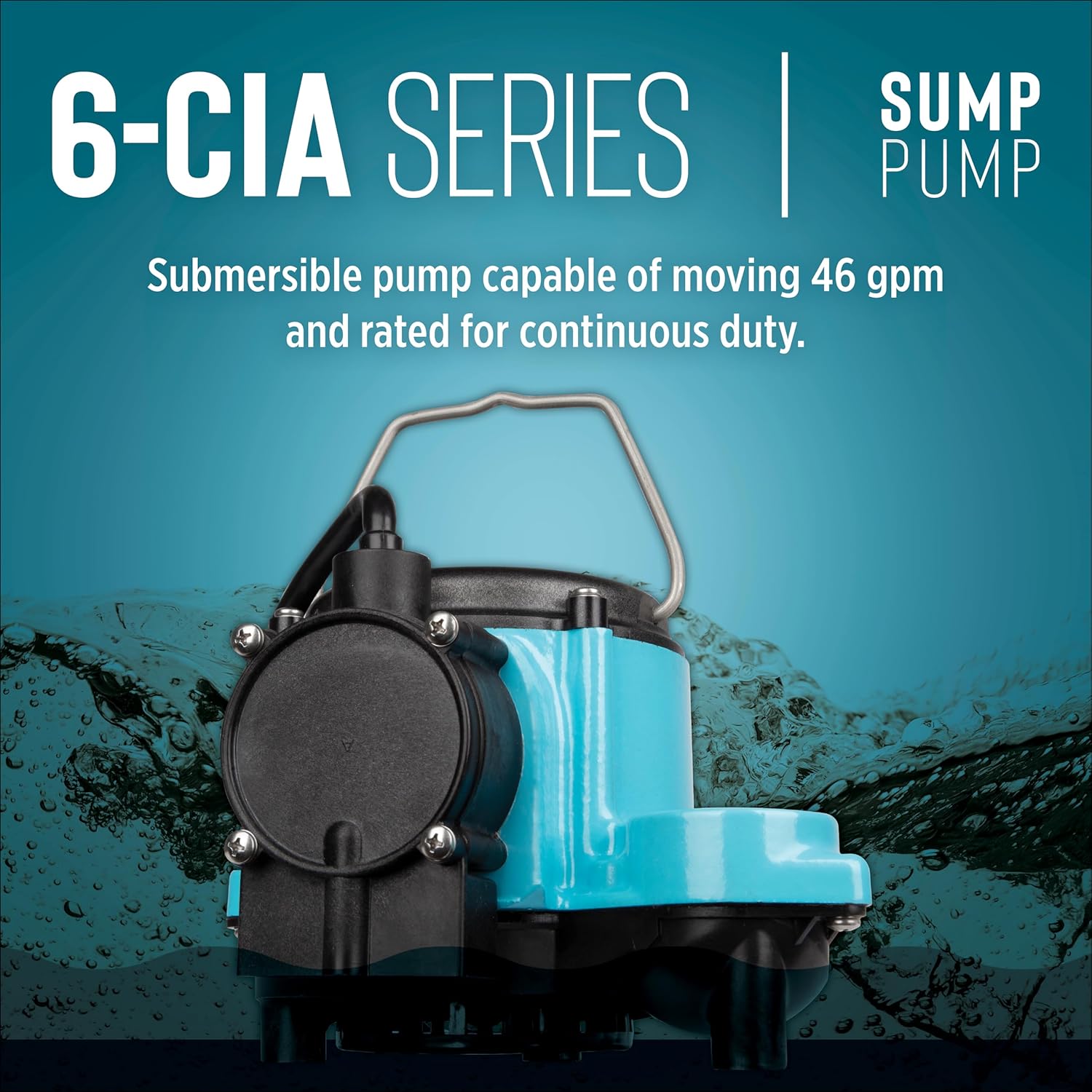

Product Description The Little Giant 6 Series submersible epoxy-coated cast iron sump pumps are equipped with a 1/3 hp 115-volt, shaded pole, oil-filled motor with thermal overload protection and is designed for continuous duty. These pumps deliver up to 2760 gph (46 gpm) at 5' lift, have a shut-off of 18' and a maximum psi of 7.0. These pumps are equipped with a 1-1/2 FNPT discharge. The maximum fluid temperature is 140 °F. The 6-Series is cCSAus listed in the USA and Canada.The Little Giant 506158 6-CIA automatic sump pump with integral switch is designed specifically for sump systems. The pressure activated integral switch (not adjustable) activates when the water level is between 7" and 10" and shuts off when the water level drops to between 1" and 4". The switch cannot be overridden for manual operation and is therefore not recommended for emergency water removal or general water transfer. This pump comes with a 10' cord. SWITCH OPTION TIPS:- Integral diaphragm switches are designed for sump systems only. Minimum basin diameter required is 10".- Mid-level integral diaphragm switches cycle more frequently. They are designed for shallow under sink or laundry tub systems. Minimum basin diameter required is 10".- Piggyback float switches are designed for sump systems, emergency water removal or water transfer applications. They can be switched to manual mode easily by unplugging the pump from the switch and plugging it directly into the outlet. Float switches require more room to activate the switch, the minimum basin diameter is 18".- Piggyback diaphragm switches are designed for sump systems, emergency water removal or water transfer applications; They can be switched to manual mode easily by unplugging the pump from the switch and plugging it directly into the outlet. The minimum basin diameter is 10". From the Manufacturer Little Giant 6-CIA has a diaphragm pressure switch which engages the pump at 7-Inch to 10-Inch water level and turns it off at 1-Inch to 4-Inch. It is one of the most popular sump pumps and works extremely well for moving large volumes of water. It has 1/3 HP shaded pole motor with overload protection and is designed for continuous duty. Typical applications include commercial, industrial, and home uses where liquid must be transferred or recirculated.

  • AUTOMATIC SUBMERSIBLE PUMP ideal for sump systems; not recommended for general dewatering or emergency water removal
  • BUILT TO LAST: Epoxy-coated cast iron housing; non-clog vortex style impeller; upper and lower bearings; nitrile/carbon/ceramic mechanical shaft seal
  • CONTINUOUS DUTY MOTOR: 1/3 HP shaded pole motor, 9.0 running Amps, 14.3 starting Amps, 720 Watts, thermally protected, CSA listed in the USA and Canada
  • BUILT-IN DIAPHRAGM SWITCH: pressure activated non-adjustable switch; on at 7 - 10"; off at 1 - 4"; NOT recommended for emergency water removal or general dewatering
  • SPECIFICATIONS: 1/3 hp; 115 Volts; 50/60 Hz; 9.0 running Amps; 14.3 starting Amps; 720 Watts; 2760 gph at 5' lift; 18' shut-off; 7.8 PSI; 10' cord; 1.5" FNPT discharge; 140° max fluid temperature
UPC 010121061682 010121061583 010121061668 783961197667
Size 2760 GPH
Brand Little Giant
Color Blue
Shape circle
Style Cast Iron, 115V, 10' Cord, Integral Diaphragm Switch
Pattern Pump
Voltage 115 Volts
Wattage 720 watts
Material Cast Iron
Horsepower 0.33
Item Weight 17 pounds
Part Number 506158
Manufacturer Little Giant
Power Source Corded Electric
Special Features Diaphragm switch
Item model number 506158
Maximum Flow Rate 46 Gallons Per Minute
Number of Handles 1
Batteries Included No
Batteries Required No
Measurement System Imperial
Product Dimensions 9.5"L x 8.5"W x 6"H
Included Components Installation manual, pump with switch attached and 10-ft. cord
Warranty Description 3 year manufacturer
Item Package Quantity 1
National Stock Number 4320-01-003-2506
Maximum Lifting Height 18 Feet
Specific Uses For Product Amateur, Professional
Is Discontinued By Manufacturer No
Global Trade Identification Number 00010121061583
