Planet Audio PEQ10 Car Equalizer - 4 Band, Pre-Amp, Half Din, Subwoofer Output with Adjustable Filter, Fixed Bands, Remote Sub Control, DPS Processor

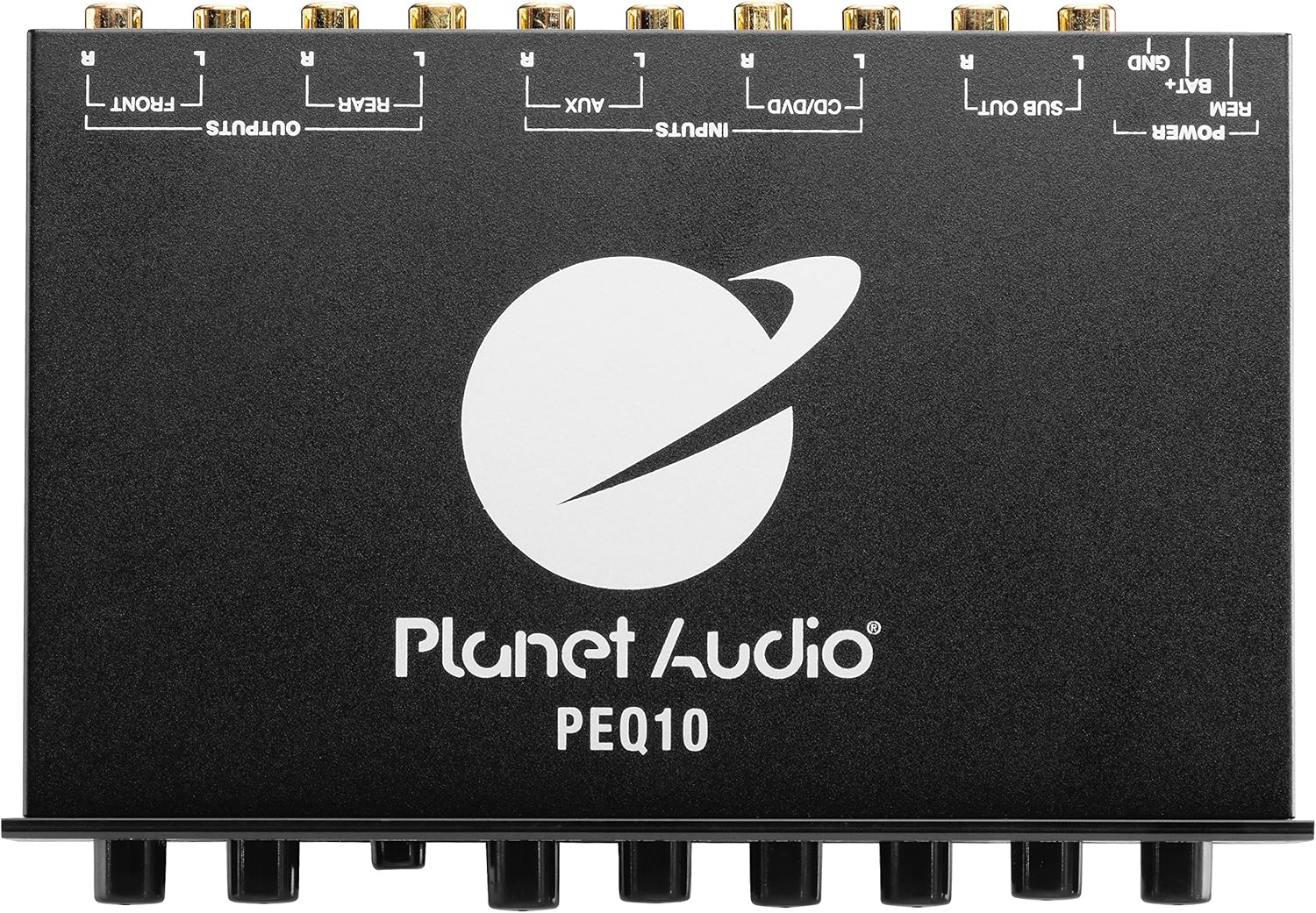

Audio ConnectionsView largerHow An Equalizer Is UsedThe Planet Audio PEQ10 parametric equalizer is a high-fidelity signal processor/preamplifier that allows you to control the relative levels within the audible frequency spectrum of a stereophonic system. It is intended for use in a car audio system which includes amplifiers in a signal path after the equalizer, and provides front, rear, and subwoofer low level outputs via RCA connectors.SpecificationsEQ center frequencies: 75Hz – 200Hz – 2kHz – 20kHzEqualization range: +/- 18 dB (boost/cut)Frequency response: 20Hz – 20kHzSubwoofer crossover frequency: Variable 45 – 180HzSignal to noise ratio: 105 dBTHD: 0.05%Subwoofer channel THD: 0.05%Channel separation: 60 dBLow Level Input Voltage: 0.5 VDefeat/Equalizer: 0 dB/ +/-1 dBPower supply: 10-16V negative groundOutput voltage: 7V RMSFront Panel Controls And Key FeaturesView largerFront Panel Controls And Key Features Master Volume Control: Use this to adjust the overall output volume level. Fader: Use this control to balance the sound level between front and rear speakers as desired. Auxiliary Input Selector: This button permits you to select the equalizer input source. The unit features separate rear RCA inputs for CD/DVD players and your choice of an AUX input. Subwoofer Frequency: Use this knob to set the crossover frequency for the subwoofer output channel (i.e. it is a low pass filter) Subwoofer Gain: This control permits you to increase or decrease the output level of the subwoofer channels. Boost/Cut Controls: Each of these controls represent a range of frequencies surrounding a center frequency to cover the audio spectrum from subwoofer frequencies to treble frequencies. Adjust these controls to suit your taste and listening environment. Each center frequency can be adjusted +/- 12 dB.

• Adj EQ bands: 75Hz, 200Hz, 2kHz, 20kHz
• Variable subwoofer filter: 45 Hz to 180 Hz, EQ bands: 4, Chassis type: Half-Din
• Inputs: Dual 2 channel source, Outputs: Front, rear & subwoofer
• Subwoofer lever control, Fader control, Gain +/-: 18 dB, S/N ratio ˃: 100 dB
• Maximum input voltage: 5.0 volt, Maximum output voltage: 7.0 volt
• Channel separation: 60 dB, THD: 0.05, Frequency response: 10 Hz to 20 kHz
• Variable phase shift selector: 45 Hz to 180 Hz, Night illumination
• Dimensions: 7 x 4.75 x 1.38, Weight: 1.35 Lbs.
• Planet Audio provides a powerful 1 year platinum online dealer warranty so long as the purchase is made through Amazon.com. We strongly encourage professional installation of this product to ensure proper and safe functionality
