Portable precision pulse battery welder,801A battery spot welder 11.6KW for industrial energy storage batteries,welding pin for battery pack assembly

Features:1. universal voltage 110V-240V wide voltage.2. 0-99 range is adjustable and welding is more precise and firm.3. LED colour display, intuitive parameter display, easy operation.4. industrial quality durable, can be used up to 12 hours continuously without protection, and the welding pen will not get hot.5. spot welding pen with low internal resistance, elastic balancer, good consistency and quality of spot welds.6.Used for spot welding batteries, metal parts and electronic components.Product parameters:Mains adapter input:AC 100-240 V 50/60 Hz.Mains adapter output:15 V 1.3 AMachine input:DC 15 V 1.3 AMachine charging time:20-30 minutesWelding voltage output:5-5.8 VWelding current output:500-2000 A(pulse)Maximum welding power:11.6 KWMaximum welding energy:60 JPulse time:0.05-5msWelding power setting range:0-99 tWelding mode:AT(Automatic welding mode)Pulse delay time:20-50 msWelding thickness of nickel:0.05-0.3 mmNotes:1. Please use a power outlet to ensure stable power supply.2. please set the voltage regulator to the appropriate parameters to ensure the welding effect.

• 【Energy Storage Spot Welder】：The newly designed battery spot welder is equipped with two super capacitors for energy storage and power supply for pulse welding. The machine's Super Energy Gathered Pulse technology combined with a maximum welding power of 11.6 KW ensures a reliable welding effect.
• 【Spot welding mode】：Equipped with the 70A separated spot welding pin and AT automatic welding mode, you can work easily and efficiently with this machine. Thanks to the low power consumption technology, you can use the machine efficiently for 12 hours without any heating problems.

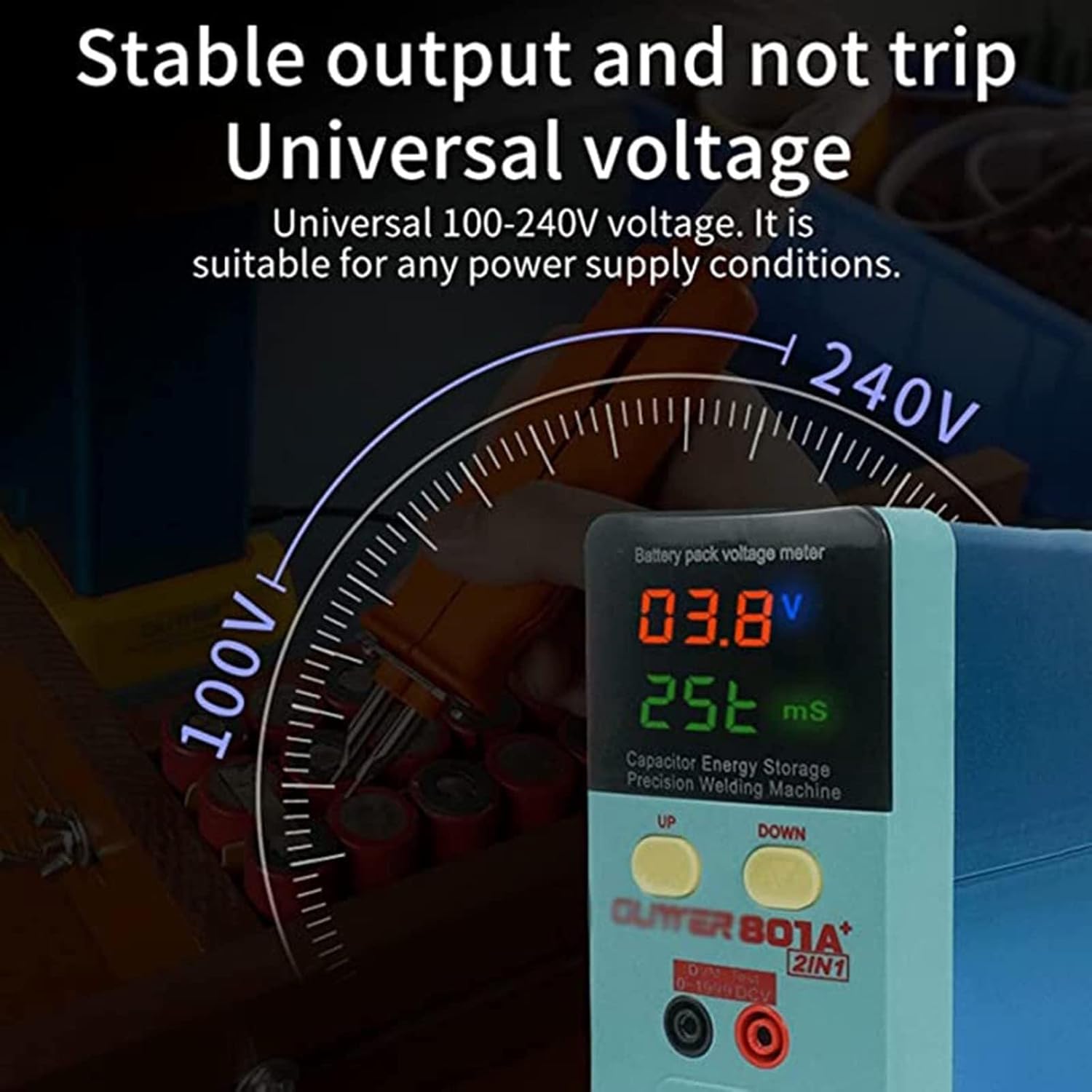

• 【Portable welder】：The small size and light weight of the welder make it more portable compared to a bulky conventional spot welder. Use a 110-240V wide voltage input, it can be used wherever you need it. The aluminium alloy casing also makes for a more powerful and reliable unit.
• 【LED screen display】：The pulse welding power can be read on the LED screen and adjusted by two setting buttons (range 0-99). 0.3 mm nickel-plated and 0.25 mm pure nickel can be welded easily with the maximum energy of 60 J.
• 【Wide range of applications】：Widely used in battery pack construction and maintenance and metal welding. Suitable for welding various battery packs such as batteries, metal parts and spot welding electronic components. The temperature of spot welding needle is about 30 ℃ and can work for a long time without protection.
