Portable QRP Automatic Antenna Tuner 15W 1.8-50MHz Lightweight ATU 7L7C Ultra-Compact OLED Screen IC-705 Compatible ATU-10

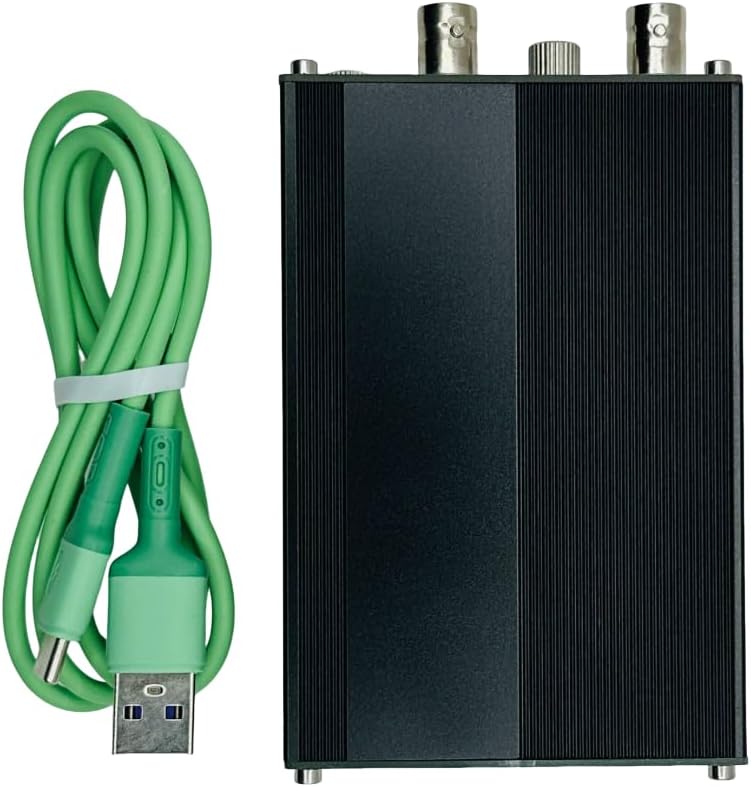

Size: 11.5*6.9*2.7CM (4.53*2.75*1.06inch) Weight: 180g Using magnetic latching relay, after successful adjustment, the key will automatically shut down without operation to maintain the current tuned state and reduce power consumption. Tuning power 1W-15W Using power: 15W (please reduce 50% power usage in digital mode) Tuning start SWR: ≥1.3, automatic measurement adjustment mode 0.91 inch OLED screen, the screen automatically sleeps in about 5 minutes, and automatically shuts down in 30 minutes (continues to maintain the previous tuning state after shutdown) Fully compatible with IC-705:The CTRL on the back uses a standard 3.5mm 3-core audio cable and can be connected to the IC-705 for automatic control (please refer to the IC-705 manual, antenna tuning part) Package Included: -1 x M-15 Tuner (battery included) -1 x USB A to C cable

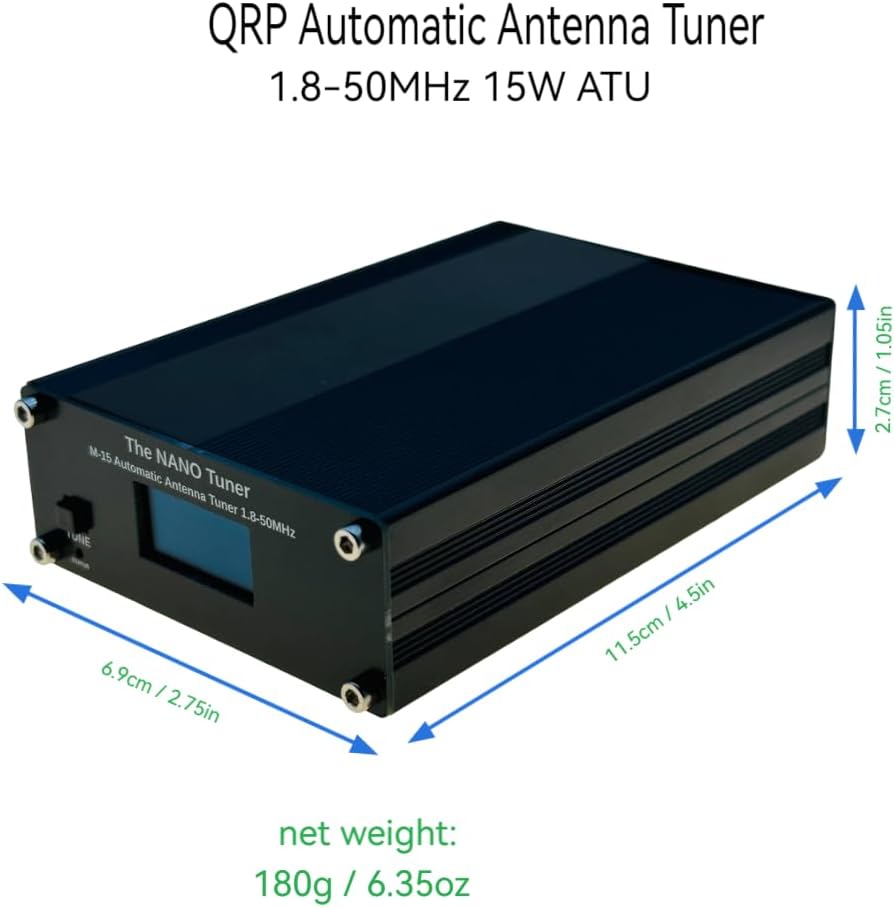

• Ultra-Portable Design – Weighing only 180g (6.35oz) and measuring 11.5x6.9x2.7cm (4.53x2.75x1.06in), this tuner is perfect for field operations, travel, or mobile ham radio setups
• Energy-Efficient Tuning – Equipped with a magnetic latching relay, it automatically shuts down after tuning to maintain the optimal state and reduce power consumption. Supports 1W-15W power (reduce to 7.5W in digital modes).
• Smart Auto-Tuning & Display – Starts tuning at SWR ≥1.3 and features a 0.91" OLED screen that sleeps in 5 minutes and shuts off in 30 minutes while retaining the tuned state.
• Seamless IC-705 Integration – Connect directly to the IC-705 via the 3.5mm CTRL port for automatic antenna tuning control (refer to IC-705 manual for setup).
• Durable & User-Friendly – Built for reliability with a compact, lightweight frame, ideal for QRP operators, portable stations, or emergency communications.
