RS232/485/422 to RJ45 Ethernet Converter, Bi-Directional Transparent Data, TCP/IP to Serial, Rail-Mount Serial Server for Data Acquisition, IoT Gateway Intelligent Instrument Monitoring
4.0 (71 items)
Limited Time Sale$19.58 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 208555893 | Release Date | 2026/03/22 | List Price | $13.05 | Model Number | 208555893 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- This is an Industrial Isolated, Rail-mount RS232/485/422 Serial Server device data acquisitor / IoT gateway designed for industrial environment (Aluminium Alloy Enclosure). It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, etc. Suitable for data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring, etc.
- Bi-Directional transparent data transmission between RS232/485/422 and Ethernet. Three Different Interfaces---Onboard RS232 / 485 / 422 Interfaces, Suitable For More Application Scenarios.
- Ethernet Port To RS232/485/422---The Ethernet port can send data to three serial ports at the same time. RS232 / 485 / 422 To Ethernet Port---Only one of the RS232, RS485, and RS422 can send data to the Ethernet port at the same time.
- Multi Power Supply Methods---Support Screw Terminal and DC Power Port for Power Supply, DC 6~36V ide Voltage Range Input. Modbus Gateway Support---Suitable for Modbus networking upgrade, Can Be Used With specific Configuration Software. Multi Configuration Methods---Supports Web browser configuration, obtaining dynamic IP via DHCP, DNS protocol connected domain server address.

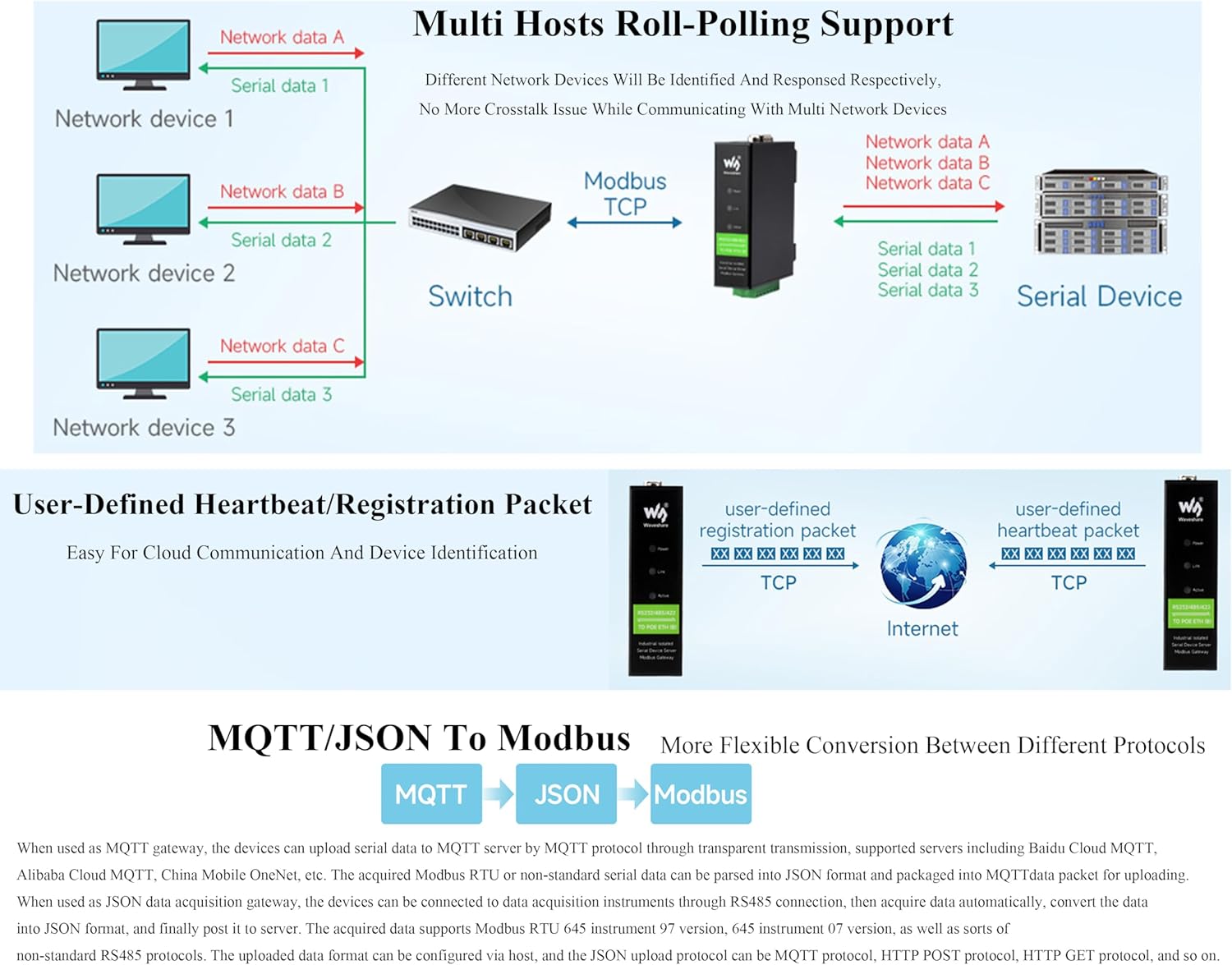

- Multi Communication Modes---Supports TCP server / TCP client / UDP mode / UDP multicast. MQTT/JSON to Modbus---More flexible conversion between different protocols. NTP protocol support---Getting network time info for serial output or data upload. User-defined heartbeat/registration packet---Easy for cloud communication and device identification.
- Multiple Protection, Safe And Stable---Onboard power supply and signal isolation, Built-in TVS (transient voltage suppression tube) can effectively suppress the surge voltage and transient peak voltage in the circuit, light-ningproof & ESD protection. Built-in resettable fuse and protection diode to ensure stable output of current and voltage, prevents over-current and over-voltage proof, improve shock proof performance.
- Rail-mount support---Easy to combine multi rail-mounted serial server together, more freely. Aluminium Alloy Enclosure---With Sand Blasting And Anodic Oxidation, Solid And Durable, Fashion And Good Hand Feeling.
- Comes with relevant resources and tutorials to help you get started quickly: bit.ly/3AGuDCQ
| Item Weight | 0.32 ounces |
|---|---|
| Manufacturer | UeeKKoo |
| Item model number | RS232/485/422 TO ETH (B) |
| Package Dimensions | 0.5 x 0.2 x 0.2 inches |
